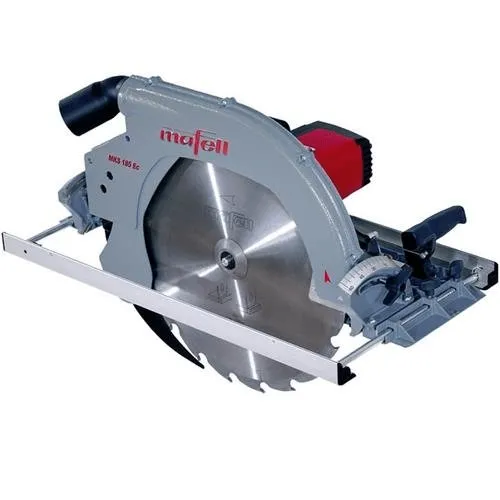

Carpenter´s portable circular saws with extraordinary weight/performance ratio.
Only possible due to the use of ultra-modern die-cast magnesium alloys.
Tiltable to 60°. That make the portable circular saws a universal partner. An easy-to-read scale on the cutting depth adjustment makes work easier and saves tiresome re-measurement. The saw's handling and behaviour are refined by smooth starting, constant speeds under load, speed reduction and overload protection. The easy-to-use stop system of the MKS and the adjustable hose connector make your work much easier.
- Continuously variable speed control for individual requirements and applications.
- Lower saw guard with remote control - for easy release of the saw blade, e.g. when positioning at sharp angles.
- Constant cut display for 0° - 60° - due to exact centre of rotation, which is on the underside of the base plate.
- With tool brake - for optimum operator safety and work processes.
- Cross-cutting and rip cuts
- Bevel cuts up to 60°
- General joining work
- Compatible materials include solid wood, laminated beams, insulating materials
Specification:
Cutting depth : 85 - 165 mm
Cutting depth at 45° : 60 - 116,5 mm
Cutting depth at 60° : 42 - 82,5 mm
Tilt range : 0 - 60 °
Nominal input : 2800 W
Weight : 17,3 kg
Nominal no-load speed : 1500 - 1800 1/min
Universal-motor : 230 V / 50 Hz
Cutting speed : 30,0 - 36,5 m/s
Includes:
1 x Allen key 6 mm; Ref. No. 093081
1 x Parallel guide fence
1 x TCT saw blade 410 x 2.5/4.2 x 30 mm (16 1/8 in.), AT, 28 teeth (MKS 165 Ec); Ref. No. 092525
1 x Mains cable 10 m (32.8 ft); Ref. 087612
