Description

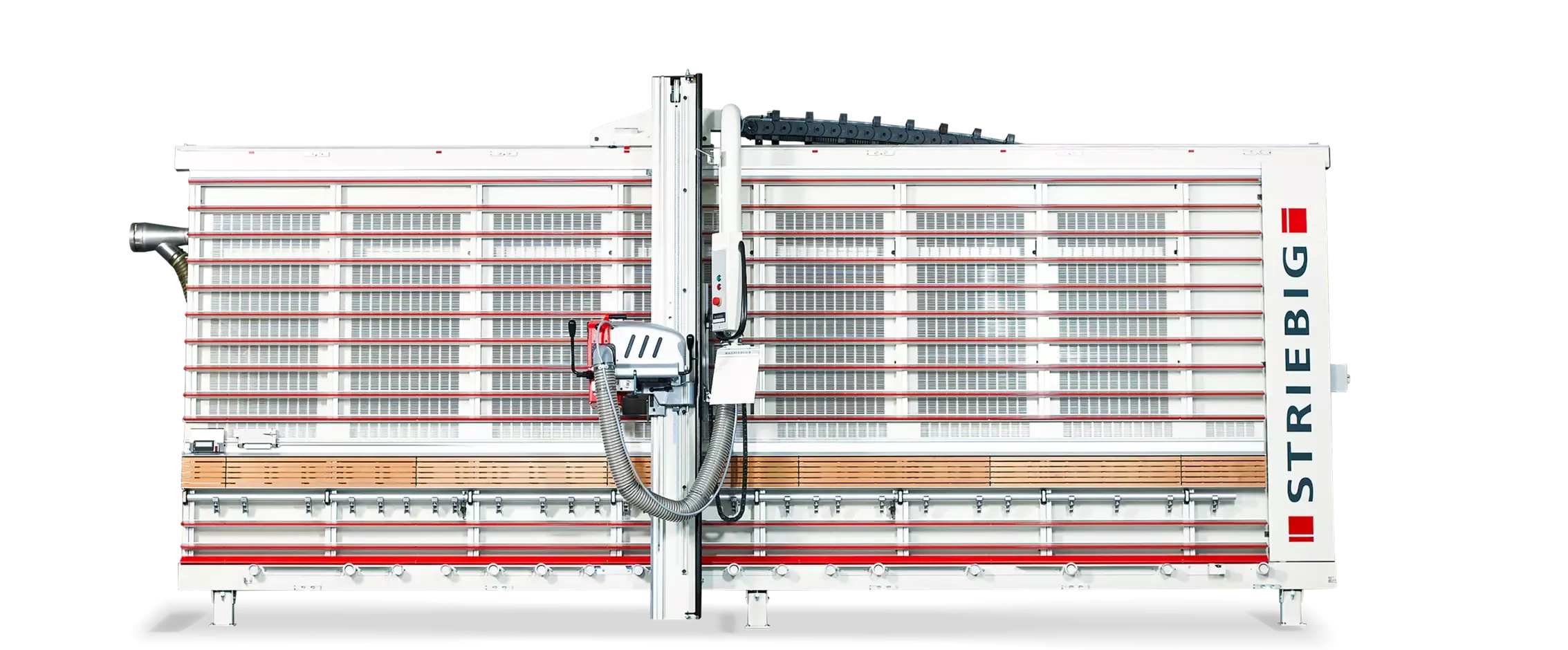

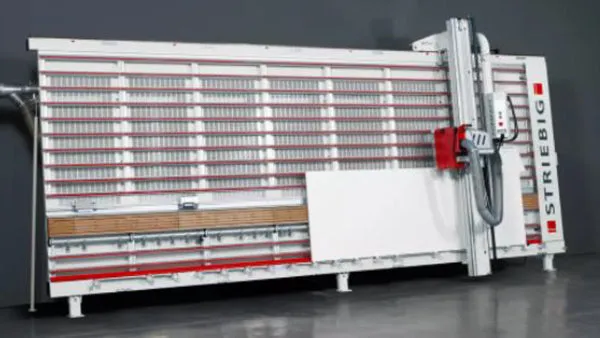

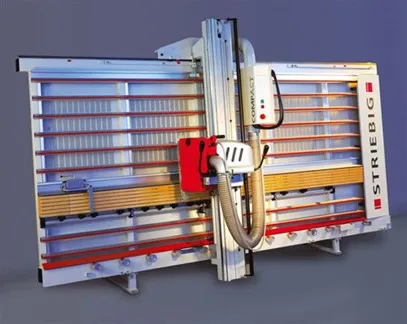

General Description: The Striebig Compact Vertical Panel Saw combines Striebig's legendary precision and performance with a smaller, more affordable footprint. Designed for users who need a space-saving, high-accuracy saw for sizing cuts, the Compact delivers cutting-edge technology, ease of use, and versatility. With cutting capacities up to 5' x 10' panels, this saw is ideal for cutting particle board, acrylics, composites, plastic, and non-ferrous metals to an accuracy of 1/10 mm.
Upgrade Your Workshop with the Striebig Compact Vertical Panel Saw!
The Striebig Compact Vertical Panel Saw is a space-saving, precise, and affordable solution for workshops that require a high-performance saw without compromising on quality. With its optional accessories and ability to handle a wide range of materials, this saw is a perfect addition to any workspace.
Contact us today to learn more or request a personalized quote!
Features
Key Features:
- Compact Design: Ideal for smaller shops or spaces, the Striebig Compact combines small dimensions with full-size capabilities. Its free-standing, one-piece welded frame provides superior stability and durability.
- Cutting Capacity: Capable of cutting panels up to 10'2" W x 5'4" H with a depth of 2-3/8" (60mm), offering a large working area without sacrificing space.
- Precision Cut Quality: Equipped with a 5-1/4 hp, 3-phase motor (220V or 440V), the saw provides smooth, accurate cuts on a variety of materials, while the saw frame ensures angular accuracy and solidness.

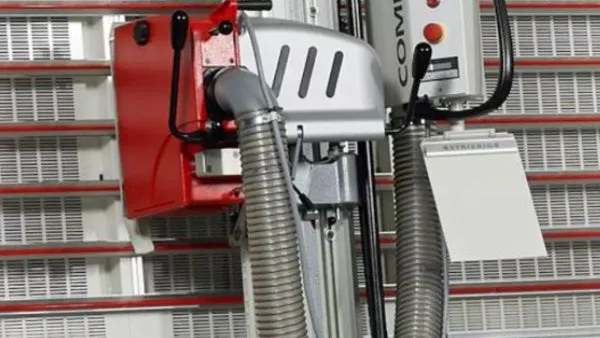

- High-Performance Saw Unit: Powered by a 3.9 kW (5.3 HP) motor with a backlash-free and smooth-running guide that guarantees precise cuts, year after year.
- TRK Dust Collection System: Exceeds European standards for dust collection, ensuring a cleaner, safer working environment with 1000 CFM. The saw is compatible with external collectors, and it features two 100mm connections (additional bottom-right connection optional).
- Cutting Stations: 40-inch centers with optional 1-meter spacing between cutting stations, providing flexibility in cutting lengths.
- Noise Protection: Designed to operate below 80 dB, providing a quieter work environment.

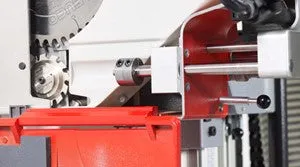

- Scoring Saw Blade (Optional): The VSA scoring unit with spacing shims ensures perfect cutting quality, especially for coated panels.
- Digital Measuring System (Optional): The DMS-X and DMS-Y digital measuring system offers precise measurement control, with display accuracy options from 0.1mm to 1.0mm.
Advantages
Advantages:
- Space-Saving Design: The Compact is designed for workshops that require a vertical panel saw but have limited space, offering all the precision of larger models with a more compact and flexible footprint.
- Legendary Precision: Built to Striebig's exacting standards, the Compact delivers accuracy of 1/10mm, just like Striebig's high-end saws, ensuring perfect edges on every cut.
- Versatile Cutting Options: The Compact is perfect for cutting a wide range of materials, including plastics, wood, and composites, and is easily customizable with optional accessories.
- Dust Collection Efficiency: The TRK dust collection system ensures that the workshop remains clean while meeting European standards for dust extraction.
Benefits
Benefits:
- Increased Productivity: The Striebig Compact combines high cutting capacity and ease of use, allowing professionals to increase their output without compromising on space or performance.
- Reliability: The steel construction and precise saw frame ensure long-lasting durability and consistent cutting precision.
- Greater Cutting Versatility: With the optional repeat rip device and scoring unit, the Compact is capable of handling a variety of tasks, including panel cutting, repeat cuts, and fine-tuned adjustments.
- Cost-Effective: The Compact offers the precision and high performance of a full-sized saw at a more affordable price point, making it an excellent investment for businesses of all sizes.
Technical Data
Technical Data:
- Cutting Capacity:
- Width x Height: 10'2" W x 5'4" H
- Max. Depth: 2-3/8" (60mm)
- Saw Blade:
- Main Blade Diameter: 250 mm (9-7/8")
- Blade Bore: 30 mm (2 pin holes - 42 mm circle)
- Motor:
- Motor Power: 5.3 HP (3.9 kW)
- Voltage: 220/440V, 3-phase, 20A (optional 208V/240V)
- Dust Collection:
- Dust Collection System: TRK, 1000 CFM
- Dust Ports: 100mm (x2)
- Dimensions:
- Saw Body (Footprint): 20" W x 25" D
- Table Dimensions: 24" W x 30" D
- Table with Extensions: 44" W x 30" D
- Weight (Net): 1100 lbs
- Weight (Gross): 1600 lbs
- Shipping Dimensions:
- Saw Body Only: 40" W x 40" D x 40" H
Options
Popular Options:
- VSA Scoring Unit: Achieve higher cutting quality on coated panels with the optional scoring saw blade.

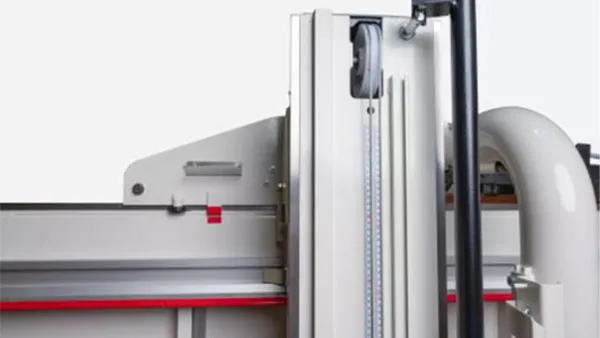

- Repeat Rip Device: For consistent, precise rip cuts from the top of the panel with a 25" scale.
- Digital Measuring System (DMS-X and DMS-Y): Ensure precise measurement control with display accuracy of 0.1/0.5/1.0 mm.
- Template Bar Stops: For setting common rip cuts with ease.
- Small Parts Support: Includes a special measuring stop for handling smaller parts, ensuring precision during cuts.
