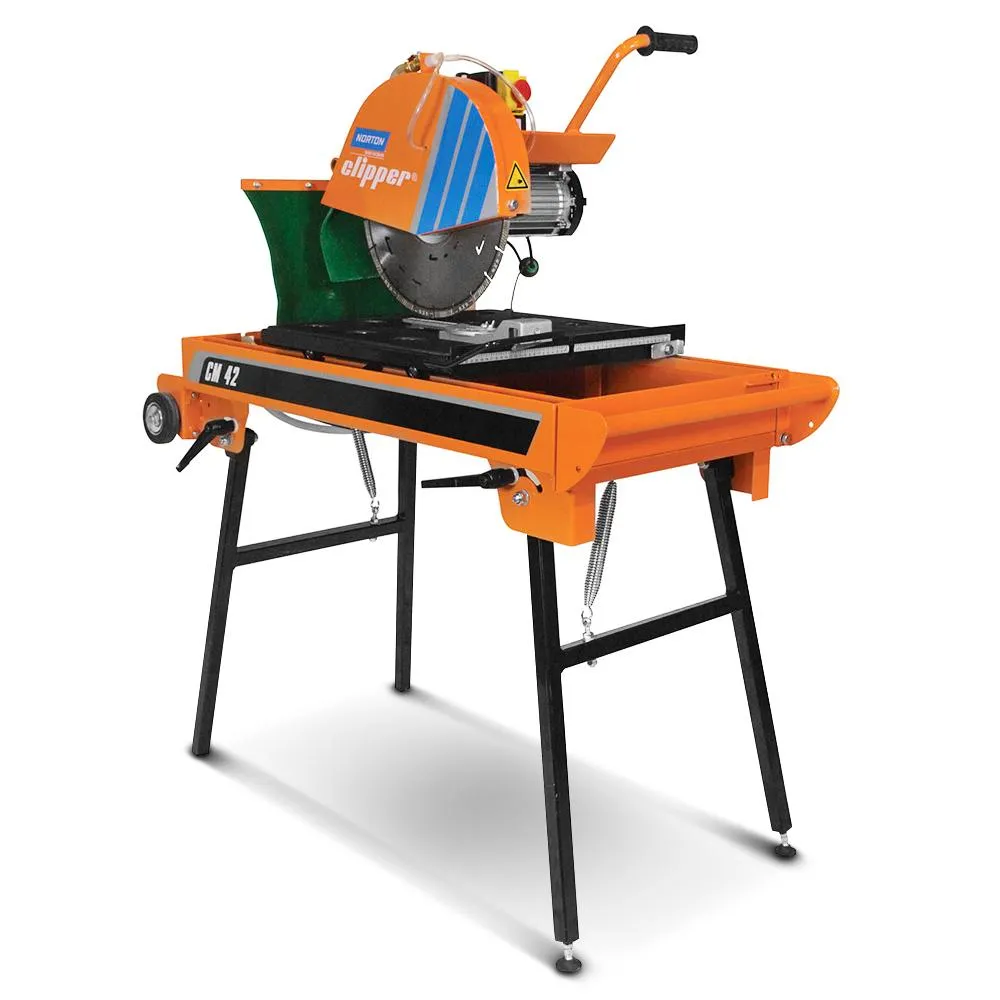

Clipper CM42 Compact 2.2kw Core Saw
The Clipper CM 42Compact Saw is the perfect saw for applications where a compact and lightweight machine is required. The Clipper CM 412 can be lifted and moved thanks to its folding legs and easy transport of wheels.
The Clipper CM 42 also features an electric motor, so there are no exhaust fumes to worry about when operating the machine in confined spaces.
| Features | Benefits |
| Folding legs & Transport wheels | Easy transportation and storage |
| Built with steel frame and legs | Extreme rigidity and lifetime |
| Steel water tray | Strong & easy cleaning |
| Electrical water pump with slurry separator | Dust free working conditions |
| 400mm guard | Optimum cutting depth of 135mm |
| Technical Data | |
| Diamond Blade Diameter | 400mm |
| Supply Voltage | 240V 1~ |
| Power kW | 2.2kW (3 Hp) |
| Generator | 6 kVA |
| Max. blade x bore | _ÔøΩÔøΩ_ 400 x 25.4mm |
| Tilting Conveyor Cart | 0ÔøΩÔøΩ_ÔøΩ_ to 45ÔøΩÔøΩ_ÔøΩ_ |
| Max cutting depth at 90/45 | 135mm / 64mm |
| Max cutting length | 600mm |
| Table size | 330 x 440mm |
| Tool speed RPM | 2800 min-1 |
| Hand Arm Vibrations (hourly limit) | <2.5 m/s2 |
| Sound power / pressure level | 87 dB (A) / 73dB (A) |
| Dimensions (LxWxH) | 1170 x 600 x 1400mm |
| Dimensions (LxWxH) (folded legs) | 1170 x 600 x 760mm |
| Weight | 70kg |
